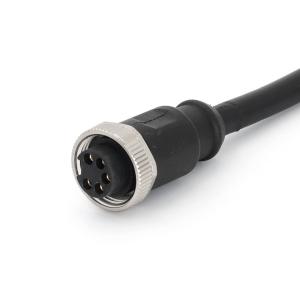

5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded

  • 1
  • 2

Model Number : M7805F-2/P00R

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Type : Pre-assembled Cable

Product name : 7/8" Connector with Molded Cable

Color : Black

Material : Brass, gold-plated

IP rate : IP67

Wire gauge : 3 x 0.15 ( 3 x 16 AWG ) PVC,black

Coding : A

Shielded : No

Contact Now

7/8" Connectors with Molded Cable 5 Pin Female Straight PVC Black Unshielded

Product Description

The 7/8" pre-assembled cable connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.

5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded

Technical Data

Thread type 7/8”-16UN
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded 1 = BK
2 = BU
3 = GN/YE
4 = BN
5 = WH		 A 8A 600V 5×0.15
(5×16AWG)
PVC, black		 Straight 2M M7805F-2/P00R
5M M7805F-5/P00R
10M M7805F-10/P00R

*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
